Features

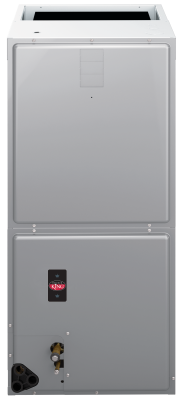

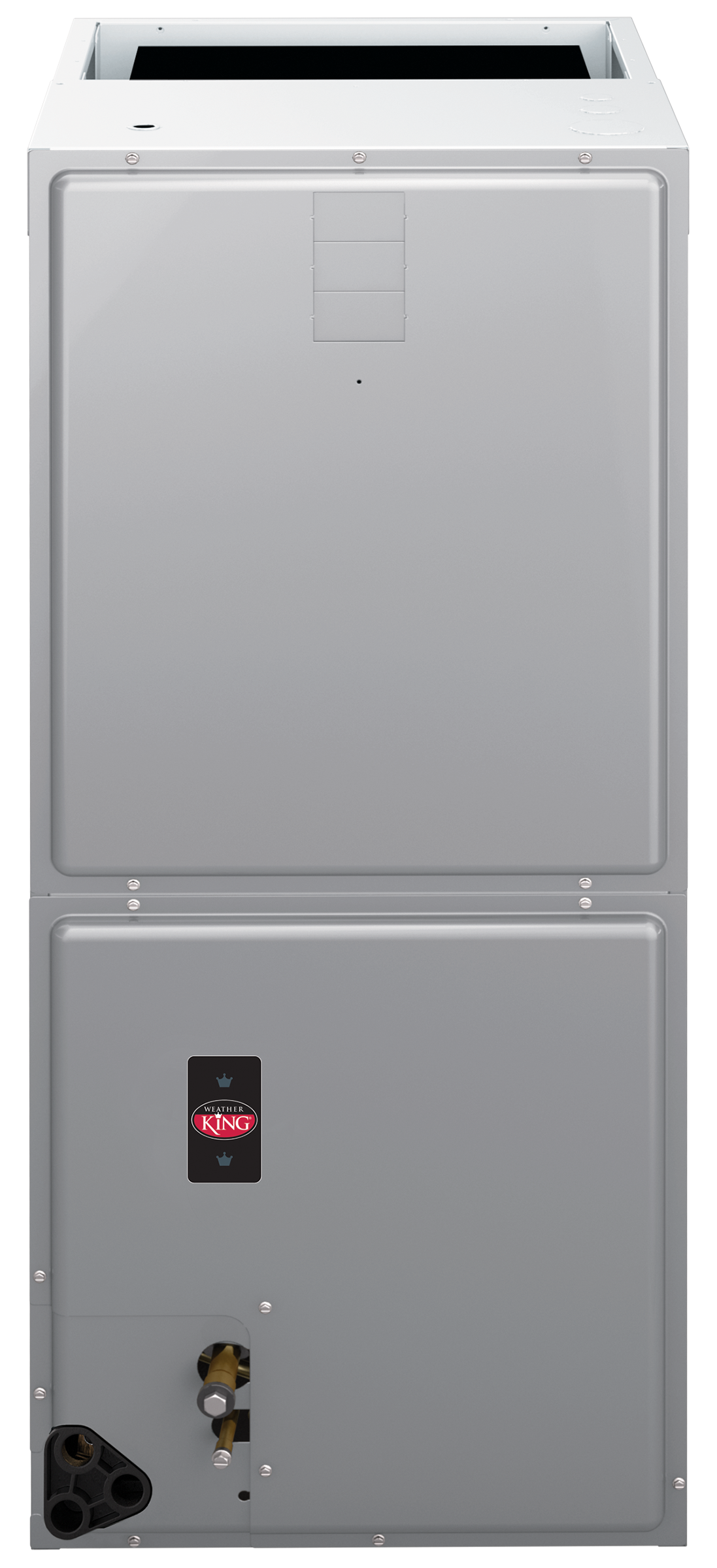

• WH1T feature a Constant Torque motor (ECM) which provides enhanced SEER performance with most WeatherKing outdoor units.
• Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
• Factory-installed indoor coil.
• Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
• Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.
• 11/2 ton [5.3 kW] through 5 ton [17.6 kW] models are between 421/2 to 57 inches [1080 to 1448 mm] tall and 22 inches [559 mm] deep.
• All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure.
• Enhanced airflow up to .7" external static pressure.
• Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing.
• Suitable for application in mobile homes.

†A.F.U.E. (Annual Fuel Utilization Efficiency) calculated in accordance with Departmentof Energy test procedures.

Specifications

• Efficiencies up to 14 SEER
• Enhanced airflow up to 7" external static pressure
• Suitable for application in mobile homes.
• Constant Torque Singe Stage Airflow
• Aluminum coil
• Thermostatic Expansion Valve (TXV)
